TECHNICAL DATA

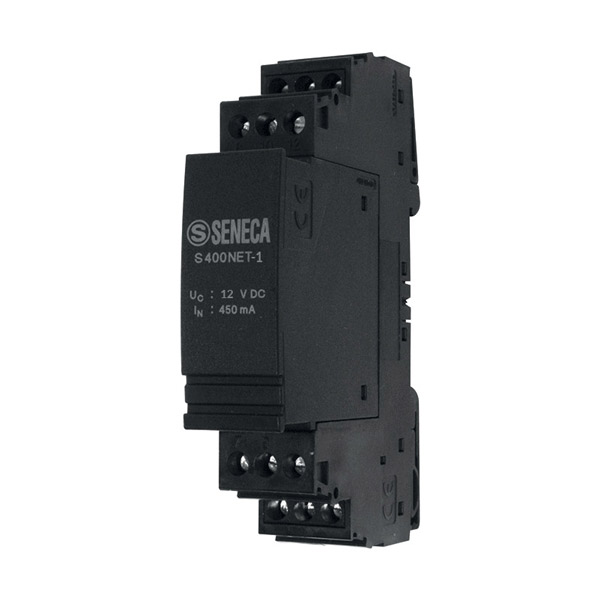

Code: S400NET-1
Description: Surge protection for Ethernet, serial and fieldbus networks, 5 wires
Nominal voltage UN 12 V DC
IEC test class C1,C2,C3,D1
Maximum continuous voltage UC 9,8 Vac / 14 Vdc
Nominal current IN 450 mA (45°C)
Atmospheric test current Iimp (10/350)μs per conductor 2,5 kA
Nominal discharge current In (8/20)μs - wire-to-wire / wire-to-earth 10 kA / 10 kA
Cumulative current (8/20)μs 20 kA
Protection level UP - wire-to-wire / wire-to-earth ≤ 50V (C3 - 25 A) / ≤ 50 V (C3 - 25 A)
Output voltage limitation at 1KV/μs, static - wire-to-wire / wire-to-earth ≤ 25 V/≤ 25 V
Series resistance 2,2 Ω ±10 %
Maximum required back-up fuse 500 mA
Ambient temperature (operation) -40°C..+85°C
Protection rating IP20
Flammability class according to UL 94 V0
Pollution degree 2
Overvoltage category III
Test standards IEC 61643-21/A1 / EN 61643-21/A1

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE S400NET-1
GROSS WEIGHT kg 0.105
ORIGIN DE
CN (Combined Nomenclature) 85363030
ECCN EAR99
