Networking

The SENECA range of Industrial Gateways, Ethernet/3G+ router with VPN support includes remote control and remote assistance devices able to extend the network extension and allow the transfer of process data between different levels of the IT and industrial communication architecture.

	R-KEY-LT	Z-KEY	Z-KEY-WIFI	Z-KEY-MBUS	Z-PASS1	Z-PASS2
Fast Ethernet ports	1	1	1	1	2	2
Serial ports	1	2	2	2	3	3
Monitoring serial port traffic	x	-	x	-	-	-
Gateway ModBUS TCP-IP / ModBUS RTU	x	x	x	-	x	x
Web server	x	x	x	x	x	x
ModBUS ASCII	x	-	x	-	x	x
Nr Max TCP-IP Client	8	8	8	8	32	32
Nr Max variables / Tag Client	500	500	500	500	2000	2000
ModBUS Gateway 'shared memory'	-	x	x	x	x	x
Transparent Gateway	-	x	x	-	x	x
Advanced Diagnostic	-	x	x	-	x	x
FTP/SFTP Server, HTTP/HTTPS Server, OpenVPN, SSL	-	-	-	-	x	x
I/O's, TAGs and variables configuration and management	-	-	-	-	x	x
Datalogging on SDcard and data sending via FTP or EMAIL	-	-	-	-	x	x
HTTP post - full CloudBOX support	-	-	x	-	x	x
Wi-Fi module	-	-	x	-	-	-
VPN and LAN/WAN management	-	-	-	-	x	x
Built-in I/O's	-	-	-	-	4	6
IF THEN ELSE logic	-	-	-	-	x	x
Modem 3G+(4G) / Redundant connection	-	-	-	-	-	x
GPS receiver	-	-	-	-	-	x

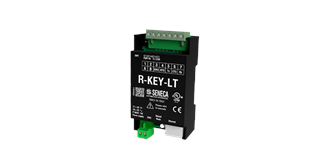

R-KEY-LT

1-port ModBUS-RTU/ASCII industrial gateway

R-KEY-LT is a compact and robust Modbus gateway that converts from Modbus TCP-IP..

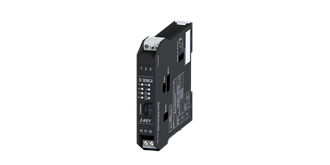

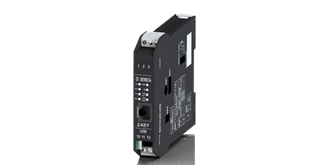

Z-KEY

2-port ModBUS industrial gateway / serial device server

Z-KEY is a device that can extend networks and allow the transfer of process dat..

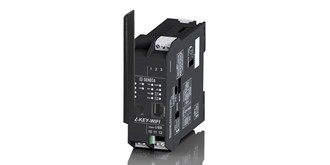

Z-KEY-WIFI

2-port ModBUS industrial gateway / serial device server with Wi-Fi module

Z-KEY-WIFI is a device that can extend networks and allow the transfer of proces..

Z-KEY-MBUS

M-BUS <-> ModBUS RTU/TCP-IP protocol Converter

M-BUS is the main bus used for energy metering and intelligent meter management,..

Z-PASS1

Gateway with VPN support - Serial Device Server with embedded I/O's

Z-PASS1 is an industrial gateway/serial device server with VPN support and embed..

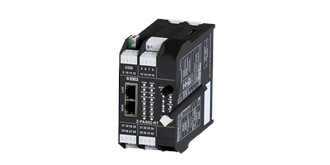

Z-PASS2

Gateway with VPN support - Serial Device Server with integrated I/O, GPS receiver and 3G+(*) modem

Z-PASS2 is an ETH/3G+(*) industrial gateway/router with VPN support - serial dev..

Z-MODEM

GSM - GPRS Quadband Industrial Modem

Z-MODEM is a GSM / GPRS Quadband industrial modem with RS232 serial interface. T..

Z-MODEM-3G

3G+ Industrial modem for Z-PASS1 e Z-TWS4

Z-MODEM-3G is a 3G+ industrial modem with microUSB interface. The rated input vo..

Z-PASS1 (old ver.)

Replaced by Z-PASS1

OUT OF PRODUCTION

Industrial router - Serial Device Server with VPN support (product rev. up to 08/2017)

Z-PASS1 and Z-PASS2 set a new standard for industrial networking. Both are multi..

Z-PASS2 (old ver.)

Replaced by Z-PASS2

OUT OF PRODUCTION

Industrial router - Serial Device Server with VPN support and 3G+ modem
