TECHNICAL DATA

Code: K109TC

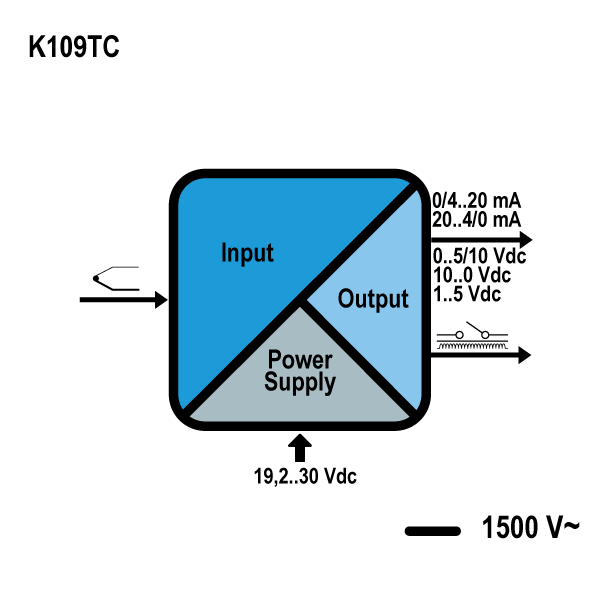

Description: Optically isolated TC / V-I converter with adjustable threshold
Input: Thermocouple type B,E,J,K,R,S,T,N (ITS-90), minimum span 100 °C
Output: current 0/4..20, 20..4/0 mA or voltage 0..5/10, 10..0, 1..5 Vdc
Auxiliary output: solid-state relay for threshold setting
Power supply: 19,2..30 Vdc
Max. current draw: 24 mA
Isolation: three-way 1.5 kVac
Measurement conversion: 14 bit
Accuracy class: 0,1%
Power supply method: Direct via spring terminal or distributed through the expandable K-BUS connector
Dimensions: 6,2 x 93,1 x 102,5 mm

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE K109TC
GROSS WEIGHT kg 0.075
ORIGIN IT
CN (Combined Nomenclature) 85437090
ECCN EAR99
