TECHNICAL DATA

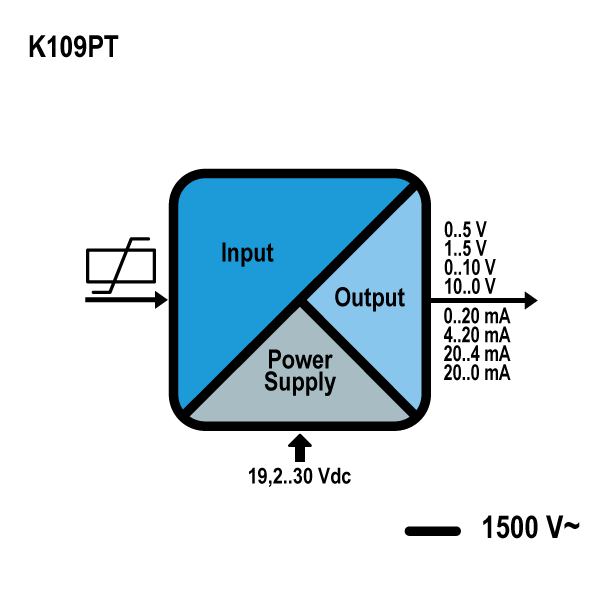

Order code : K109PT
Description: Pt100 converter
Power supply: 19,2..30 Vdc
Input: Nr 1 channel, Pt100, -150...+650 °C, min span 50°C
Output: Nr 1 channel, voltage (0..10 / 10..0 / 0..5 / 1.5 V) and current (4..20 / 20..4 / 0..20 / 20..0 mA)
Insulation: 1,5 kV (50 Hz, 1 min)
Dimensions WxHxD: 6,2x93,1x102,5 mm

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE K109PT
GROSS WEIGHT kg 0.075
ORIGIN IT
CN (Combined Nomenclature) 85437090
ECCN EAR99

Manuals, flyers


IT EN FR DE ES
Datasheet
pdf icon it pdf icon en - - -
K Line Compact Converters
pdf icon it pdf icon en - - -
Installation Manual
pdf icon it pdf icon en pdf icon fr pdf icon de pdf icon es

DRAWINGS & CAD MODELS


▼
2D model
dwg icon Multi
3D Model
dwg icon Multi
3D Model (electrical symbols)
dwg icon Multi
3D Model
stp icon Multi

Product Compliance


▼
EU Conformity Declaration
pdf icon Multi
UL Certification
pdf icon Multi
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi
0
0
0
☀️ Summer Holiday Closure 🏖️ Our offices will be closed from August 7 to 23 inclusive.To guarantee the shipment of your products before our shutdown, we kindly ask you to submit your orders according to the following deadlines:
  • Non-EU Destinations: Orders must be received by 11:00 AM (CET) on Tuesday, August 4th.
  • EU Destinations: Orders must be received by 11:00 AM (CET) on Wednesday, August 5th.
Orders received on Thursday, August 6 will be processed and shipped starting Monday, August 24 📦🚚. Thank you for your understanding, and have a wonderful summer from the SENECA team! 😎🍹



Product versions

Price
K109PT

Pt100 to DC current/voltage isolator/converter

In stock ?
€ 135.00

Accessories

Price
K-SUPPLY

Redundant power supply module for K-Line modules

In stock ?
€ 60.00
K-BUS

Expandable power supply connector

In stock ?
€ 11.00
K-BUS-G

Expandable power supply connector (grey)

In stock ?
€ 11.00
K-BUS-V

Expandable power supply connector (green)

Availability to confirm, please contact us ?
€ 11.00
