TECHNICAL DATA

Code: K109S

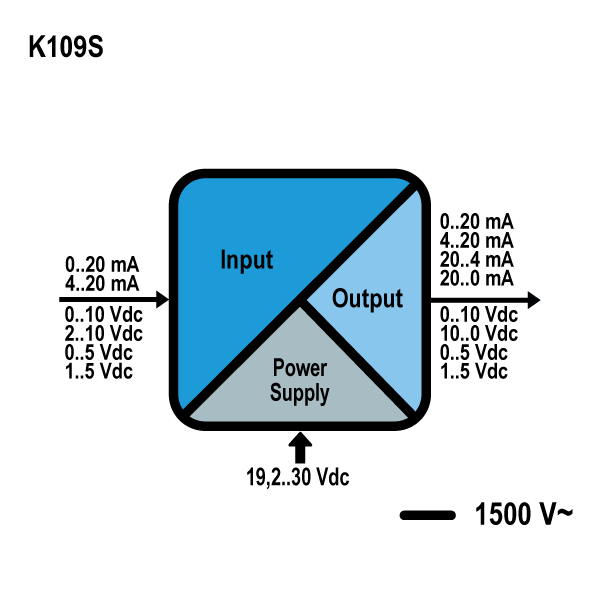

Description: Optically isolated V-I / V-I converter with active input
Input: current 0/4..20 mA (loop power supply) or voltage 0..10, 2..10, 0..5, 1..5 V
Output: current 0/4..20, 20..4/0 mA or voltage 0..5/10, 10..0, 1..5 Vdc
Power supply: 19,2..30 Vdc
Max. current draw: 23 mA, 45 mA (aux. power)
Isolation: three-way 1.5 kVac
Measurement conversion: 14 bit
Accuracy class: 0,1%
Power supply method: directly via spring terminal or distributed via K-BUS expandable connector
Auxiliary power supply: on 3 terminals 17..20 V
Dimensions: 6,2 x 93,1 x 102,5 mm
Special functions: range inversion, square-root extraction, linearisation for horizontal cylindrical tanks

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE K109S
GROSS WEIGHT kg 0.075
ORIGIN IT
CN (Combined Nomenclature) 85437090
ECCN EAR99

Manuals, flyers


IT EN FR DE ES
Datasheet
pdf icon it pdf icon en - - -
K Line Compact Converters
pdf icon it pdf icon en - - -
Installation Manual
pdf icon it pdf icon en pdf icon fr pdf icon de pdf icon es
Application Scheme
pdf icon it - - - -
Application Note
- pdf icon en - - -

DRAWINGS & CAD MODELS


▼
2D model
dwg icon Multi
3D Model
dwg icon Multi
3D Model (electrical symbols)
dwg icon Multi
3D Model
stp icon Multi

Product Compliance


▼
EU Conformity Declaration
pdf icon Multi
UL Certification
pdf icon Multi
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi
0
0
0

Product versions

Price
K109S
Optically isolated V-I / V-I converter with active input
In stock ?
€ 135.00
