TECHNICAL DATA

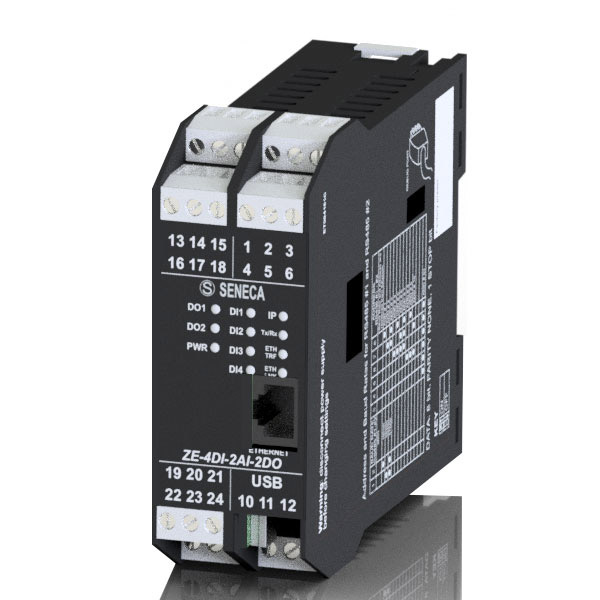

Order code : ZE-4DI-2AI-2DO
Description: 4 CH Digital Input/ 2 CH Analogue Input, 2 CH Digital Output Modbus RTU-Modbus TCP-IP
Power Supply: 19..28 Vac (50..60 Hz), 11..40Vdc
Insulation: 1.500 Vac
Digital Input: 4-CH PNP, NPN, max freq. 7 kHz
Digital Output: 2-CH SPDT relay max 5 A
Analog Input: 2-CH 0-20 mA / 0-30 V, 16 bit ADC resolution
Totalizers: 4 @ 32 bit max 10 kHz
Counters: 4 @ 32 bit max 7 kHz
Interfaces: Nr. 1 100 Mbps Ethernet port, Nr. 2 RS485 ports, Nr. 1 microUSB 2.0 port
Protocols: ModBUS RTU, ModBUS TCP-IP, http
Configuration: Software (EASY SETUP), DIP switch (address, baud rate), web server (I/O)
Operating Temperature: -25°C..+70°C
Dimension: 100 x 35 x 111 mm

Manuals, flyers


IT EN FR DE ES RU
Distributed I/O System
pdf icon it pdf icon en - - - pdf icon ru
Installation Manual
pdf icon it pdf icon en pdf icon fr pdf icon de pdf icon es -
User Manual
pdf icon it pdf icon en - - - -

DRAWINGS & CAD MODELS


▼
2D model
dwg icon Multi
3D Model
stp icon Multi

Certifications


▼
CE Conformity Declaration
pdf icon Multi
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi

▼
EASY SETUP

Suite for all programmable SENECA devices
zip icon Multi
