TECHNICAL DATA

Order code : Z-8TC

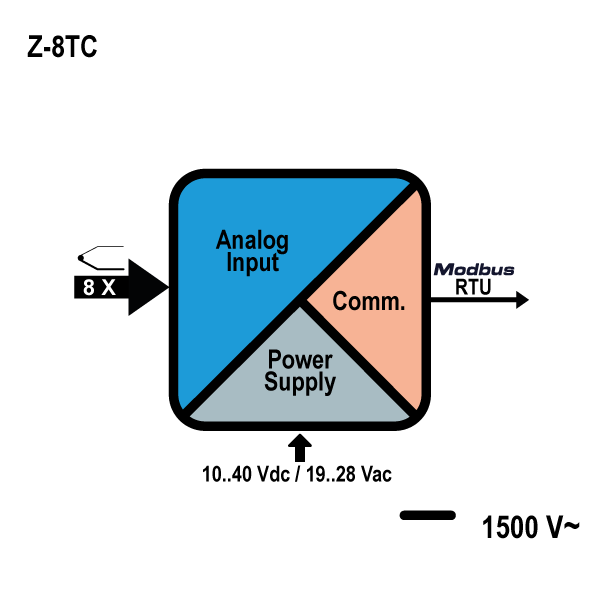

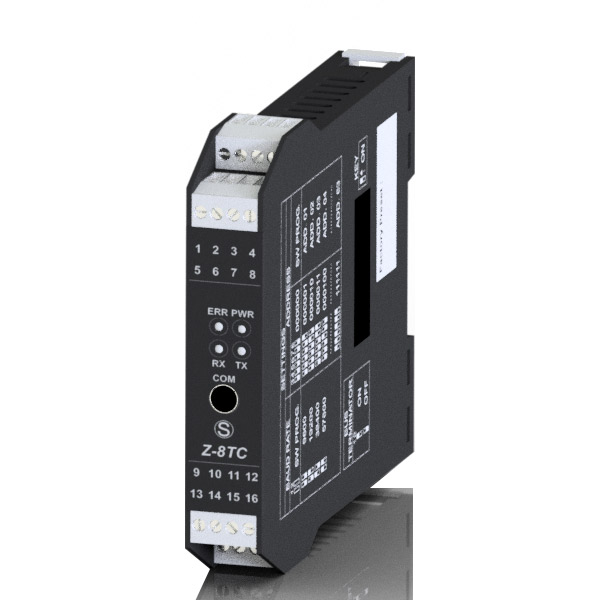

Description: CH-8 thermocouple input module / RS485
Power supply: 10..40 Vdc; 19..28 Vac (50-60 Hz) bus powered
Dimensions WxHxD: 17,5x100x112 mm
Mounting: DIN 46277, 35 mm symmetrical rail
Insulation: 1,5 kVac @ 6 way
Data acquisition: Every 25 ms
Accuracy: 0,1%
Input: CH-8 thermocouple type J,K,R,S,T,B,E,N or shunt up to 70 mV
Communication: RS485 2 wire, ModBUS RTU slave protocol
Programming: Via software (Z-NET3) or DIP-switch

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE Z-8TC
GROSS WEIGHT kg 0.16
ORIGIN IT
TARIC 85389091
ECCN 5A991
