TECHNICAL DATA

Order code : ZC-3AO

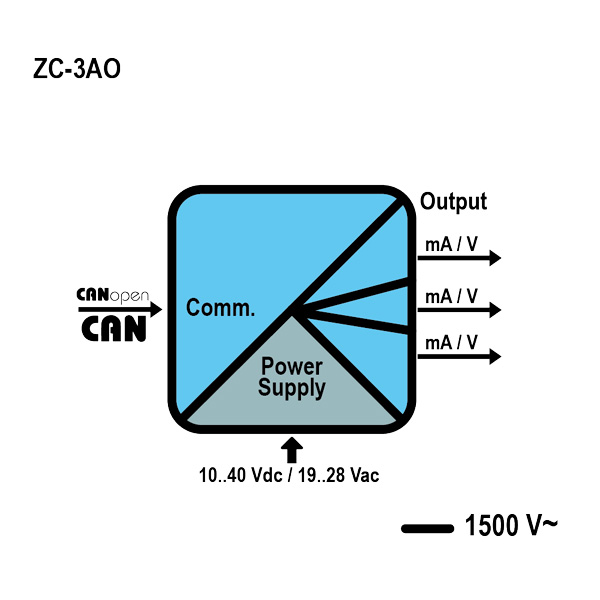

Description: 3 CH analog output (mA, V) CANopen module
Communication: CANopen 401 v.2.01
Power Supply: 10..40 Vdc, 19..28 Vac
Max consumption: 2,5 W
Insulation: 1,5 kVac (5 way)
Accuracy: 0,05%
Resolution: 14 bit
Channels: 3
Voltage range: ±10 V
Current range: 0..20, 4..20 mA
RPDO (0-100% output): < 20 ms
Operating temperature: -10..+65°C
Dimension: 35 x 100 x 112 mm

Manuals, flyers


IT EN FR DE ES RU
Datasheet
pdf icon it pdf icon en - - - -
Distributed I/O System Z-PC line
pdf icon it pdf icon en - - - pdf icon ru
Installation Manual
pdf icon it pdf icon en pdf icon fr pdf icon de pdf icon es -
User Manual
- pdf icon en - - - -

DRAWINGS & CAD MODELS


2D model
dwg icon Multi
3D Model
stp icon Multi
EDS File
eds icon Multi

Certifications


CE Conformity Declaration
pdf icon Multi
REACH and ROHS declarations
pdf icon Multi
Origin Declaration
pdf icon Multi
0
0
0

Product versions

Price
ZC-3AO

Availability to confirm, please contact us ?
0.00

Mandatory accessory

Price
Z-PC-DINAL2-17.5

DIN rail bus system head terminal + 2 slots 17.5 mm

In stock ?
26.00
Z-PC-DIN2-17.5

DIN rail bus system 2 slots 17.5 mm

In stock ?
18.00
Z-PC-DIN8-17.5

DIN rail bus system 8 slot 17.5 mm

Limited quantity available ?
37.00

Accessories

Price
CS-JACK-DB9F

Serial programming cable ( Jack / DB9F )

Availability to confirm, please contact us ?
20.00
