Product

Z110DI

Power supply

Self-powered from input loop

Isolation

3,000 Vrms

Degree of protection

IP20

Response time

< 1ms

Accuracy class

Er% = 0.025 X (RL/100) + 0.025 (Referred to nominal range)

Thermal drift

<10ppm

Operating temperature

-25..+70°C

Dimensions

17.5 x 100 x 112 mm

Connections

Removable screw terminals

Housing

PA6, black color

Mounting

35 mm DIN rail (IEC/EN 60715)

Weight

100 g

Certifications

CE, UKCA

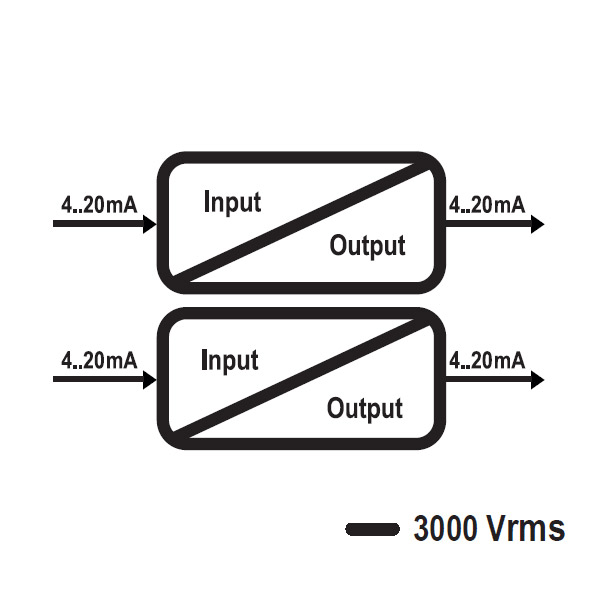

INPUT DATA

Channels

2

Type

Nominal current: 4 ÷ 20 mA
Operating current: 0.1÷ 25 mA
Voltage drop at 20mA < 2 V; Max. voltage 30V Passband <100Hz Minimum current 10µA

OUTPUT DATA

Channels

2

Type

Impressed current 4 ÷ 20 mA
Max. load resistance: 1400 Ω; Max. voltage 30V
