TECHNICAL DATA

Power Supply 85-276 Vac; 120-380 Vdc
Input voltage range 3x230/400 V...3x240/415 V 50-60 Hz 4 wires; 3x400 V...3x415 V 50-60 Hz 3 wires
Current input TA 1/5 A
Accuracy class Class 1 active energy according to IEC/EN 62053-21
Class B active energy to EN 50470-3 (MID)
Class 2 reactive energy to IEC/EN 62053-23
S0 Output 2 passive optoisolated
Tariff input Active optoisolated, max voltage 276 Vac/Vdc
Dimensions 4 DIN
Certifications CE, MID

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE S534-6-MID
GROSS WEIGHT kg 0.4
ORIGIN IT
CN (Combined Nomenclature) 90283019
ECCN EAR99

Manuals, flyers


IT EN DE
Power & Energy Monitoring System
pdf icon it pdf icon en -
Installation Manual
pdf icon it pdf icon en pdf icon de

Certifications


▼
CE Conformity Declaration
pdf icon Multi
MID Declaration of Conformity
pdf icon Multi
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi

▼
ENERGY ModBUS pack

Configuration tool for Energy counters S500 series with ModBUS or LAN interfaces
zip icon Multi
ENERGY M-BUS pack

Configuration tool for Energy counters S500 series with M-BUS interface
zip icon Multi
0
0
0

Product versions

Price
S534-6-MID

Three-phase energy counter for 1/5 A TA input, 3/4 wires with MID certification

Limited quantity available ?
€ 241.00

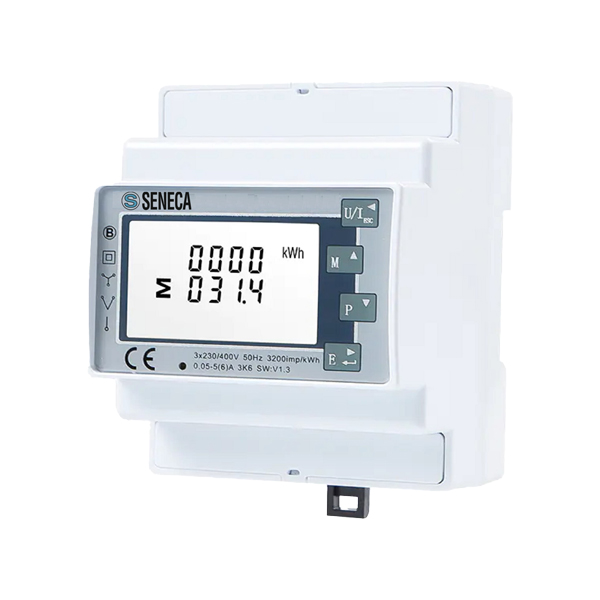

S534-6-MOD-MID

Three-phase energy counter for 1/5 A TA input, 3/4 wires, Modbus interface, with MID certification (coming soon)

Availability to confirm, please contact us ?
€ 132.00

Accessories

Price
S107USB

RS485/USB serial converter, portable version

In stock ?
€ 100.00
S107MBU

USB - M-BUS converter

Availability to confirm, please contact us ?
€ 473.00
S500-ETH

[S500-ETH] Optical - LAN communication interface, ModBUS TCP-IP, Web server

Availability to confirm, please contact us ?
€ 240.00
S500-MBU

[S500-MBU] Optical - M-BUS communication interface

In stock ?
€ 88.00
S500-MOD

[S500-MOD] Optical - RS485 ModBUS RTU communication interface

In stock ?
€ 151.00
S500-KNX

S500-KNX - KNX communication module

Availability to confirm, please contact us ?
€ 146.00
TAA-01005-2030

Split core current transformer 100/5A CL.0,5 D=20x30mm

Limited quantity available ?
€ 111.00
TAA-01505-2030

Split core current transformer 150/5A CL.0,5 D=20x30mm

Limited quantity available ?
€ 111.00
TAA-02005-2030

Split core current transformer 200/5A CL.0,5 D=20x30mm

Limited quantity available ?
€ 111.00
TAA-02505-2030

Split core current transformer 250/5A CL.0,5 D=20x30mm

Limited quantity available ?
€ 114.00
TAA-03005-2030

Split core current transformer 300/5A CL.0,5 D=20x30mm

Limited quantity available ?
€ 114.00
TAA-04005-2030

Split core current transformer 400/5A CL.0,5 D=20x30mm

Availability to confirm, please contact us ?
€ 114.00
TAA-02505-5080

Split core current transformer 250/5A CL.0,5 D=50x80mm

Limited quantity available ?
€ 122.00
TAA-04005-5080

Split core current transformer 400/5A CL.0,5 D=50x80mm

Limited quantity available ?
€ 122.00
TAA-05005-5080

Split core current transformer 500/5A CL.0,5 D=50x80mm

Limited quantity available ?
€ 127.00
TAA-06005-5080

Split core current transformer 600/5A CL.0,5 D=50x80mm

Availability to confirm, please contact us ?
€ 127.00
TAA-07505-5080

Split core current transformer 750/5A CL.0,5 D=50x80mm

Availability to confirm, please contact us ?
€ 139.00
TAA-08005-5080

Split core current transformer 800/5A CL.0,5 D=50x80mm

Availability to confirm, please contact us ?
€ 139.00
TAA-05005-8080

Split core current transformer 500/5A CL.0,5 D=80x80mm

Limited quantity available ?
€ 142.00
TAA-08005-8080

Split core current transformer 800/5A CL.0,5 D=80x80mm

Availability to confirm, please contact us ?
€ 153.00
TAA-10005-8080

Split core current transformer 1000/5A CL.0,5 D=80x80mm

Availability to confirm, please contact us ?
€ 153.00
TAC-0205-00-0000

Primary wound current transformer 20/5A CL. 0.5

In stock ?
€ 33.00
TAC-0255-00-0000

Primary wound current transformer 25/5A CL. 0.5

In stock ?
€ 36.00
TAC-0305-00-0000

Primary wound current transformer 30/5A CL. 0.5

In stock ?
€ 38.00
TAC-0505-22-3010

Through-bar current transformer 50/5A CL.1, cable 22mm, bar 30x10mm

In stock ?
€ 19.00
TAC-0605-22-3010

Through-bar current transformer 60/5A CL.1, cable 22mm, bar 30x10mm

In stock ?
€ 20.00
TAC01005-22-3010

Through-bar current transformer 100/5A CL.1, cable 22mm, bar 30x10mm

In stock ?
€ 20.00
TAC01505-22-3010

Through-bar current transformer 150/5A CL.1, cable 22mm, bar 30x10mm

In stock ?
€ 20.00
TAC01005-32-4010

Through-bar current transformer 100/5A CL.0.5, cable 32mm

In stock ?
€ 25.00
TAC02505-32-4010

Through-bar current transformer 250/5A CL.0.5, cable 32mm

In stock ?
€ 27.00
TAC04005-32-4010

Through-bar current transformer 400/5A CL.0.5, cable 32mm

In stock ?
€ 28.00
TAC05005-32-4010

Through-bar current transformer 500/5A CL.0.5, cable 32mm

In stock ?
€ 31.00
TAC06005-32-4010

Through-bar current transformer 600/5A CL.0.5, cable 32mm

In stock ?
€ 31.00
TAC08005-32-4010

Through-bar current transformer 800/5A CL.0.5, cable 32mm

Limited quantity available ?
€ 36.00
