TECHNICAL DATA

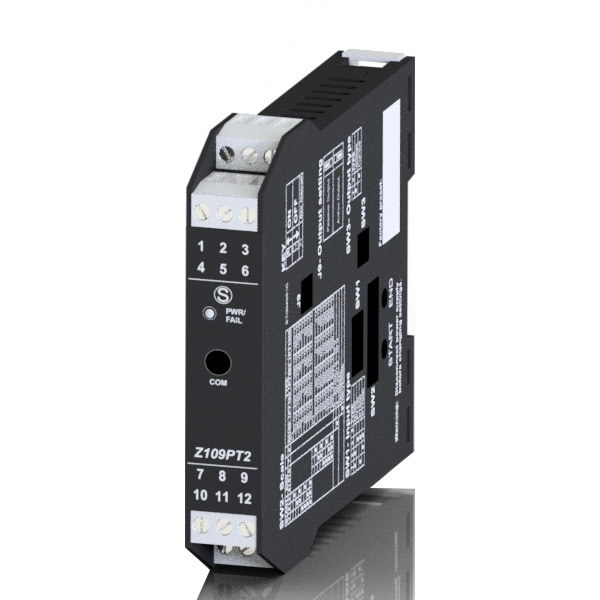

Order code : Z109PT2
Description: RTD to DC current / voltage isolator converter
Power supply: 9..40 Vdc, 19-28 Vac 50-60 Hz
Insulation: 1.500 @ 3 way
Input: RTD (Ni100, Pt100, Pt500, Pt1000, Ni100)
Output: Voltage (0..5 / 0..10 / 1..5 / 2..10 V), current (0..20 / 4..20 mA)
Accuracy: 0,1%
Sample frequency / Resolution: From 240 sps (@ 11 bit + sign) to 15 sps (@ 15 bit + sign)
Settings: Via DIP switch (input / output type, start - end, measure range), or jumper (active / passive output)

Manuels, prospectus


IT EN FR DE ES
Fiche Technique
pdf icon it pdf icon en - - -
Installation Manual
pdf icon it pdf icon en pdf icon fr pdf icon de pdf icon es

Certifications


Déclaration de Conformité
pdf icon Multi
Certificat UL
pdf icon Multi
Dichiarazione REACH e ROHS
pdf icon Multi
Déclaration d’Origine
pdf icon Multi
0
0
0

Versions du produit

Z109PT2

RTD to DC current / voltage isolator converter

Disponibilité à confirmer, nous contacter ?

Accessoire obligatoire

CS-JACK-DB9F

Serial cable programming ( Z109REG, Z109REG2, Z-4AI-D, Z-4TC-D, Z3AO, Z8AI, Z-8TC ) ( Jack / DB9F )

Disponibilité à confirmer, nous contacter ?

Accessoires

S117P1

RS232/USB, TTL/USB, RS485/USB serial converter

Disponible en quantité limitée ?
