TECHNICAL DATA

Order code : A-GSM-QUAD

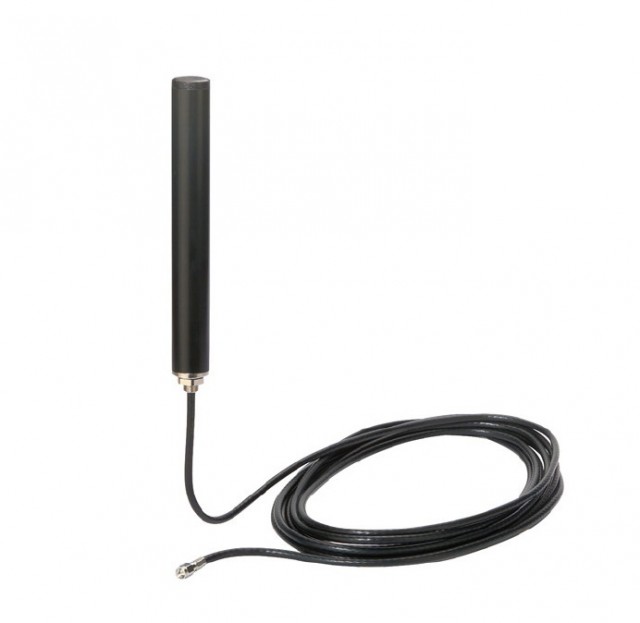

Description: High performance Quadband GSM Antenna
Frequency Range: 824-960 MHz, 1710-1880 MHz (GSM), 1900-2200 MHz (GSM / UMTS)
Gain: 0 dB
Max Power max: 20 W
Polarization: Linear vertical
Operating Temperature: -40..+70°C
Connector: SMA
Antenna Lenght: 5 m
Total weight: 310 g

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE A-GSM-QUAD
GROSS WEIGHT kg 0.7
ORIGIN IT
CN (Combined Nomenclature) 85291039
ECCN 5A001
