TECHNICAL DATA

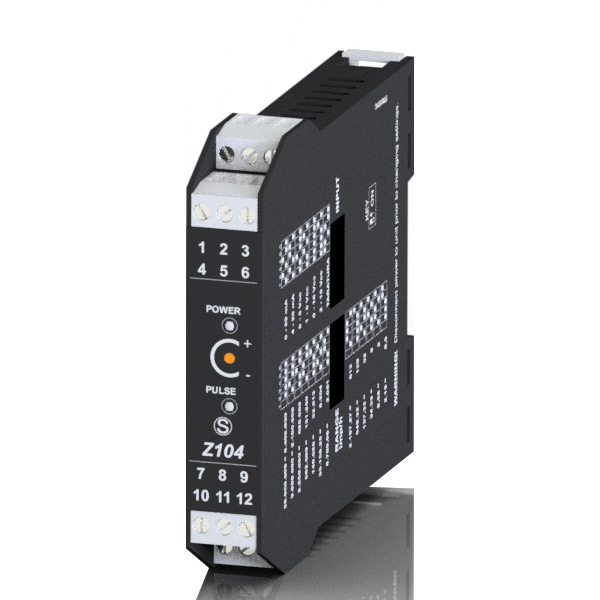

Order code : z104
Description: DC to frequency isolator / converter
Power supply: 19..40 (9..30 option) Vdc, 19..28 Vac
Insulation: 1.500 Vac
Input: Current 0..20, 4..20 mA; voltage 0..5, 1..5, 0..10, 2..10 Vdc
Output: Transistor npn open collector 30 Vdc 300 mA; reed relay30 Vdc/ac 100 mA, max frequency 10 kHz
Accuracy: 0,2%

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE Z104
GROSS WEIGHT kg 0.16
ORIGIN IT
CN (Combined Nomenclature) 85437090
ECCN EAR99

Manuels, prospectus


IT EN FR DE ES
Fiche Technique
pdf icon it pdf icon en - - -
Convertisseurs et séparateurs de signaux Z-Line
pdf icon it pdf icon en - - -
Manuel d'Installation
pdf icon it pdf icon en pdf icon fr pdf icon de pdf icon es

DESIGNS & CAD MODÈLES


2D model
dwg icon Multi
3D Model
stp icon Multi

Certifications


Déclaration de Conformité
pdf icon Multi
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi
0
0
0

SENECA offices will be closed from 23 December to 7 January included. Business activities will resume regularly on Monday 8 January. To guarantee you a punctual shipment of products by Thursday 21 December (last day of shipping), we kindly ask you to send any requests no later than Wednesday 20 December. Orders received from December 21st will be dispatched from January 8th.

While thanking you for your cooperation, we wish you a happy winter holidays!

Versions du produit

Prix
Z104

DC to frequency isolator / converter

En stock ?
130,00
