TECHNICAL DATA

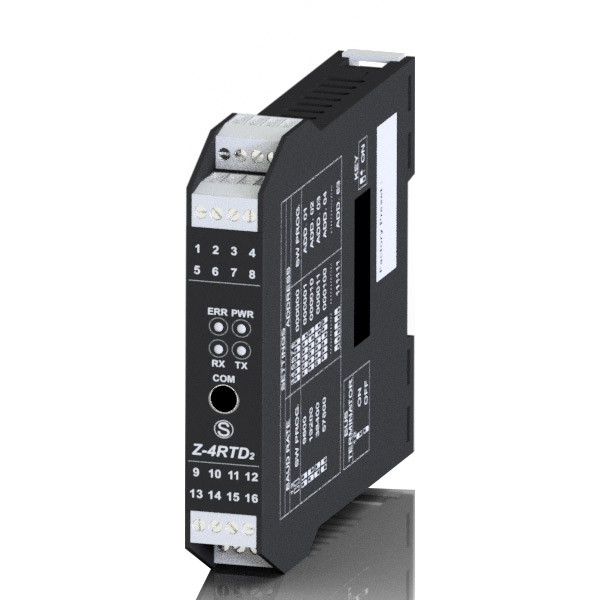

Order code : Z-4RTD2
Description: 4-CH RTD input module / RS485
Power supply: 10..40 Vdc; 19..28 Vac
Insulation: 1,5 kVac 6-way between channnel, power supply, communication
Dimensions WxHxD: 17,5x100x112 mm
Mounting: DIN 46277, 35 mm symmetrical rail
Input: 4-CH from thermoresistances (Pt100, Ni100, Pt1000, Pt500) @ 2, 3, 4 wire
Resolution: 14 bit
Communication: RS485 2 wire, ModBUS RTU slave protocol, RS232 @ 2.400 baud
Programming: Via software (Z-NET3) or DIP-switch

Manuales, flyer


IT EN FR DE ES RU
Hoja de Datos
pdf icon it pdf icon en - - - -
Installation Manual
pdf icon it pdf icon en pdf icon fr pdf icon de pdf icon es -
Manual de usuario
- pdf icon en - - - -
Description for specifications
docx icon it - - - - -
Pattern approval certificate of measuring instruments
- - - - - pdf icon ru

Tools


▼
Z-PC series Labview drivers

SHA256 Checksum:
e41be423d52ace9736421735196ccd2cdc0a6358e81f3d222331940d29f3edfb
zip icon Multi

DISEÑOS Y MODELOS CAD


▼
2D model
dwg icon Multi
Modelo 3d
dwg icon Multi

Certificados


▼
Déclaration de conformité CE
pdf icon Multi
RINA Certificate
pdf icon Multi
Dichiarazione UL
Dichiarazione UL
pdf icon Multi
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi

▼
EASY SETUP

Suite para todos los instrumentos programables SENECA
zip icon Multi
Z-NET4

Configurador de sistema Serie Z-PC en base IEC 61131
zip icon Multi

Productos relacionados

Pt100

Sondas de temperatura

Productos alternativos

Z-4RTD2

Módulo 4 entradas de termorresistencias / RS485
0
0
0

Accesorio obligatorio

Z-PC-DINAL2-17.5

DIN rail bus system head terminal + 2 slots 17.5 mm

Disponibilidad para confirmar, contáctenos ?
Z-PC-DIN2-17.5

DIN rail bus system 2 slots 17.5 mm

En stock ?
Z-PC-DIN8-17.5

DIN rail bus system 8 slot 17.5 mm

En stock ?

Aaccesorios

K107USB

DIN rail RS485/USB serial converter

En stock ?
S107USB

RS485/USB serial converter, portable version

En stock ?
S117P1

RS232/USB, TTL/USB, RS485/USB serial converter

En stock ?
Z-SUPPLY

Single-phase switching power supply 24V @ 1.5A

En stock ?
