TECHNICAL DATA

Order code : Z-AIR

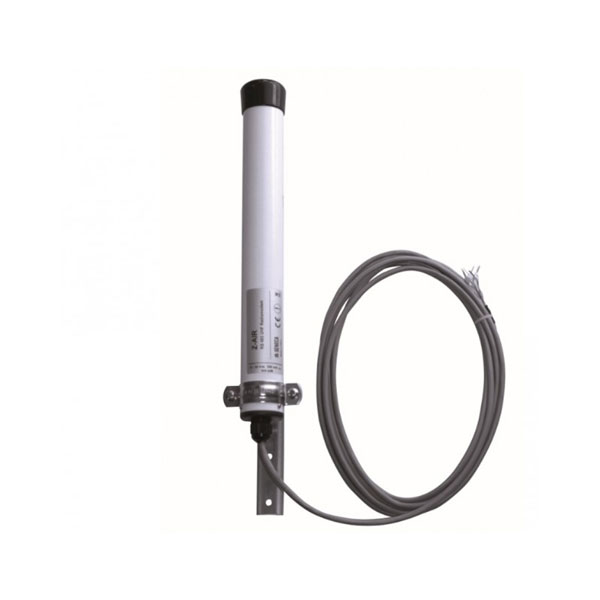

Description: Radiomodem with integrated antenna. Outdoor applications, IP65 protection
Power Supply: 8 – 36 Vdc
Bandwidth: 868 – 870 MHz
Range: Depending on path loss / antenna gain up to some kilometers away
Data rate: 4,8 kbps (@ 12,5 kHz); 9,6 kbps (@ 25 kHz)
Stability: ± 1 ppm/°C
Antenna: λ/2 embedded
Modulation: 9K00F1D (@ 12,5 kHz); 18K00F1D (@ 25 kHz)
Operating temperature: -30..+70 °C
Dimension: Ø 40 x L 320 mm
Protection degree: IP65
Receiver: Input sensitivity < - 107 dBm
Interface: RS485; data rate 1,2 - 38,4 kbps; operation Mode Half - Duplex

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE Z-AIR
GROSS WEIGHT kg 0.975
ORIGIN IT
CN (Combined Nomenclature) 85176200
ECCN 5A991

Manuales, flyer


IT EN
Hoja de Datos
pdf icon it pdf icon en
Installation Manual
pdf icon it pdf icon en
Manual del Usuario
pdf icon it pdf icon en

Tools


Configuración Z-AIR
zip icon Multi

Certificados


Declaración de Conformidad
pdf icon Multi
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi
0
0
0

Versiones del producto

Z-AIR

RADIOMODEM 868 MHz 500mW embedded antenna, 5Mt cable- RS485

Disponibilidad para confirmar, contáctenos ?
