TECHNICAL DATA

Power Supply  Through bus connection TP1
Nominal voltage  24 Vdc
Bus power consumption  ‹10 mA (Class 10 mA)
Communication Protocol  Konnex
Connection Port  black/red terminals for connection to twisted pair type 1 (TP1)
Recommended cable  KNX/EIB certified 1x2x0,8 mm or 2x2x0,8 mm
Communication speed  9.600 bps
Operating temperature  -25°C..+55°C
Protection degree  IP20
Pollution degree  II
Dimension  18x90x64 mm
Norms  EN 50491-5-1, EN 50491-5-2, EN 50491-5-3

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE S500-KNX
GROSS WEIGHT kg 0.08
ORIGIN IT
CN (Combined Nomenclature) 90289010
ECCN EAR99

Manuels, prospectus


▼ EN
Installation Manuel

SHA256 Checksum:
c3d0dc7221374681bdc41773b74a72d13089485629d7c98cb5746d36116e1374
pdf icon Multi -
Manuel d'utilisation du protocole KNX
- pdf icon en

Certifications


▼
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi
0
0
0

Versions du produit

S500-KNX

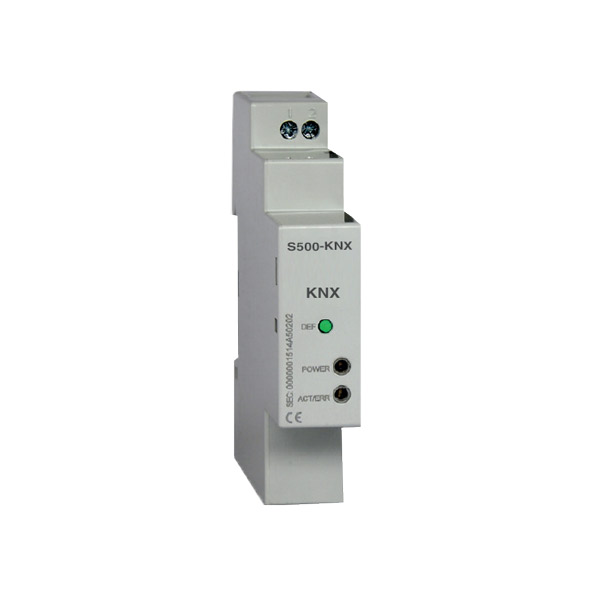

S500-KNX - KNX communication module
