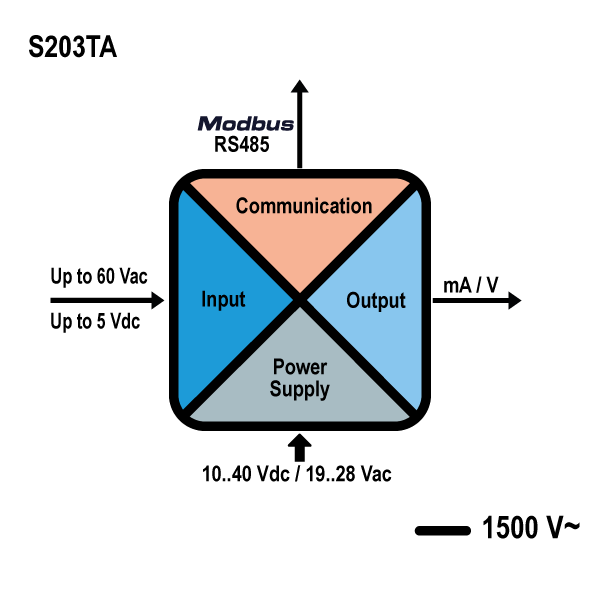

TECHNICAL DATA
| Order code : | S203TA |
| Description: | Advanced triple phase network analyzer up to 5 Arms input |
| Power supply: | 10–40 Vdc, 19-28 Vac (50-60 Hz) |
| Serial interface: | isolated RS485, ModBUS RTU |
| Voltage input: | max 600 Vac (50-60 Hz) |
| Current input: | up to 5 Arms |
| Measured variables: | Vrms, Irms, Watt, Var, VA, frequency, cosφ, energy |
| Re-transmitted analog output: | voltage / current |
| Re-transmission error: | 0,1% |
| Precision class: | 0,2% |
| Insertion: | single phase, 4 wires triple phase |
| Connections: | TA secondary max 5A, typical precision 0,5% |
SHIPPING AND EXPORT INFORMATION
| PRODUCT CODE | S203TA |
| GROSS WEIGHT kg | 0.24 |
| ORIGIN | IT |
| CN (Combined Nomenclature) | 90303330 |
| ECCN | 3A002 |
Handbücher, Flyer
Zertifizierungen
Zubehör
Alternative Produkte
Produktversionen

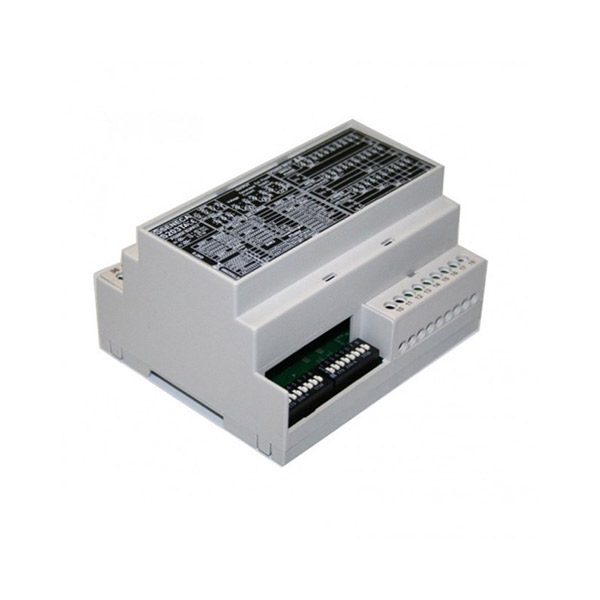

S203TA
AC triple-phase network analyzer (5 Arms max input)
Verfügbarkeit zu bestätigen, kontaktieren Sie uns ?
