TECHNICAL DATA

Power supply 5..30 Vdc (loop powered)
Insulation 1,5 kVac
Response time <1 s
Accuracy Class 0,1% (min 0,1°C for RTD and 1°C for TC)

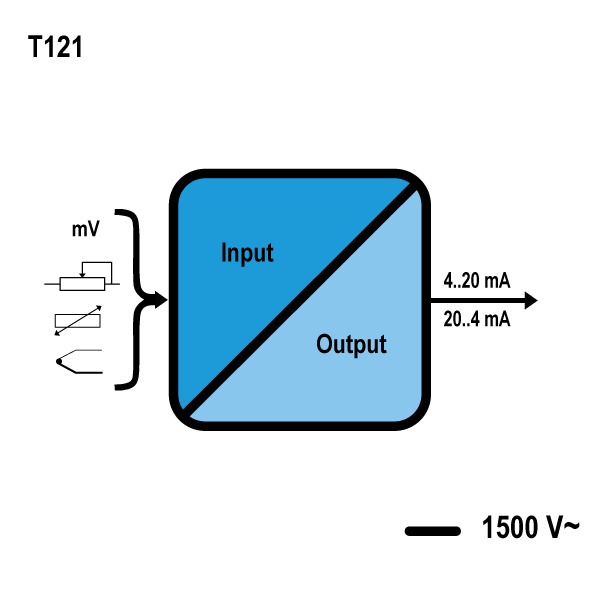

Input type Cu50, Cu100
Pt100, Pt500, Pt1000
Ni100, Ni120, Ni1000
TC J , K, R, S, T, B, E, N, L; input impedance 10 MΩ
Potentiometer: 500 Ω..100 kΩ
Voltage: -150..+150 mV; input impedance 10 MΩ
Resistance 0..+400 (1.760) Ω
Output channel CURRENT (mA) 4..20, 20..4 mA (2-wire)
Programming EASY SETUP software (Start / Full Scale, Rejection, RTD Type, Resistance
cables, overrange etc.)
Operating temperature -40..+85°C
Connections Spring clamps
Dimension (ØxH) Ø 43,7 x 20 mm
Standard CE, ATEX
Norms EN 61000-6-4, EN 61000-6-2

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE T121
GROSS WEIGHT kg 0.034
ORIGIN IT
CN (Combined Nomenclature) 85437090
ECCN EAR99

Manuels, prospectus


IT EN FR DE ES
T Series Temperature Transmitters
pdf icon it pdf icon en - - -
Installation Manual
pdf icon it pdf icon en pdf icon fr pdf icon de pdf icon es
ATEX safety instructions
pdf icon it pdf icon en - - -

DESIGNS & CAD MODÈLES


2D Model
zip icon Multi
3D Model
zip icon Multi

Certifications


Déclaration de Conformité
pdf icon Multi
ATEX Certification
pdf icon Multi
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi
0
0
0

Versions du produit

Prix
T121

Isolated loop powered temperature transmitter

En stock ?
80,00
T121-C

[T121-C] - presetted version (please specify configuration settings in order notes)

En stock ?
89,00

Accessoires

Prix
EASY-USB

USB - UART TTL converter

En stock ?
74,00
S117P1

RS232/USB, TTL/USB, RS485/USB serial converter

En stock ?
180,00
FLEX-DIN

DIN rail adapter for T120 and T121

En stock ?
5,00
